General Hexagons
BA Hexagons
Metric Hexagons
Metric Hexagon Heads

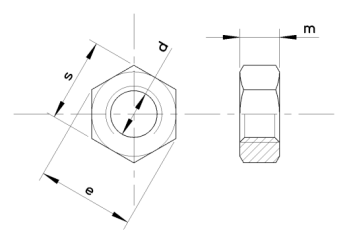

Hexagon Definitions
d = Thread Size
s = Across Flats Dimension
e = Across Corners Dimension
m = Thickness
Hexagon Tables
Thread Size (d)
Across Flats (s max)
Across Flats (s min)
Across Corners (e)
Thickness (m max)
Thickness (m min)
(mm)
(mm)
(mm)
(mm)
(mm)
(mm)
1.6
3.2
3.02
3.41
1.3
1.05
2
4
3.82
4.32
1.6
1.35
2.5
5
4.82
5.45
2
1.75
3
5.5
5.32
6.01
2.4
2.15
4
7
6.78
7.66
3.2
2.9
5
8
7.78
8.79
4.7
4.4
6
10
9.78
11.05
5.2
4.9
8
13
12.73
14.38
6.8
6.44
10
16
15.73
17.77
8.4
8.04
12
18
17.73
20.03
10.8
10.37
14
21
20.67
23.35
12.8
12.1
16
24
23.67
26.75
14.8
14.1
20
30
29.16
32.95
18
16.9
24
36
35
39.55
21.5
20.2
30
46
45
50.85
25.6
24.3
36
55
53.8
60.78
31
29.4
42
65
63.1
71.3
34
32.4
48
75
73.1
82.6
38
36.4
56
85
82.8
93.56
45
43.4
